TitanHD

TitanHD

State of the art wireless video HD/SD

transmission system

Package : 3800*,- Euros

* Without VAT - ExWorks, according to models availability

CinemonitorHD Transvideo

Real time transmission

TitanHD is a state of the art digital wireless video HD/SD transmission system. Based on a 5GHz ISM band COFDM MiMo wireless system, TitanHD carries RGB or YCrCb 10-bit signal (HD SDI and HDMI), as well as SD SDI and composite. It transmits without any loss in a normal environment with a latency below 5ms, providing real time monitoring. Signal strength and stability are excellent.

Plug & Play

Setting up the TitanHD is really easy. Once transmitter and receiver have been paired, they can work for hours. There is no need to pair the modules at each start-up. In automatic mode transmitter and receiver will find together the best available channel. Several advanced possibilities allow to re-link faster in case of signal loss, or to set one TitanHD on upper channels while another is set on lower channels.

Link

The channel selection can be manual or automatic. In Broadcast mode up to 6 receivers can be linked to a single transmitter. In P2P mode the link is possible only between one receiver and one transmitter, but data transmission from receiver to transmitter is possible (S/N ratio & GPI/GPO).

Audio & metadata transmission

Two audio inputs (Tx) and outputs (Rx) can be either balanced analog or embedded in the SDI. Timecode and Tally (REC on/off) transmission are possible in place of one audio channel (if any embedded in the SDI). Possible bidirectional remote signals with GPI/GPO.

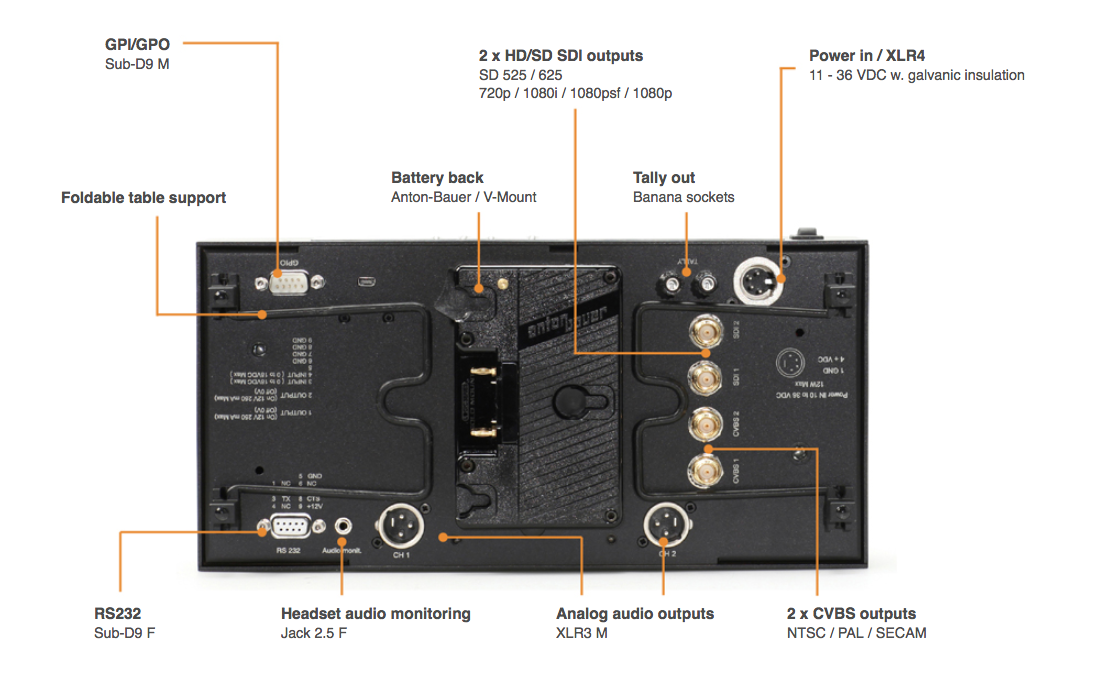

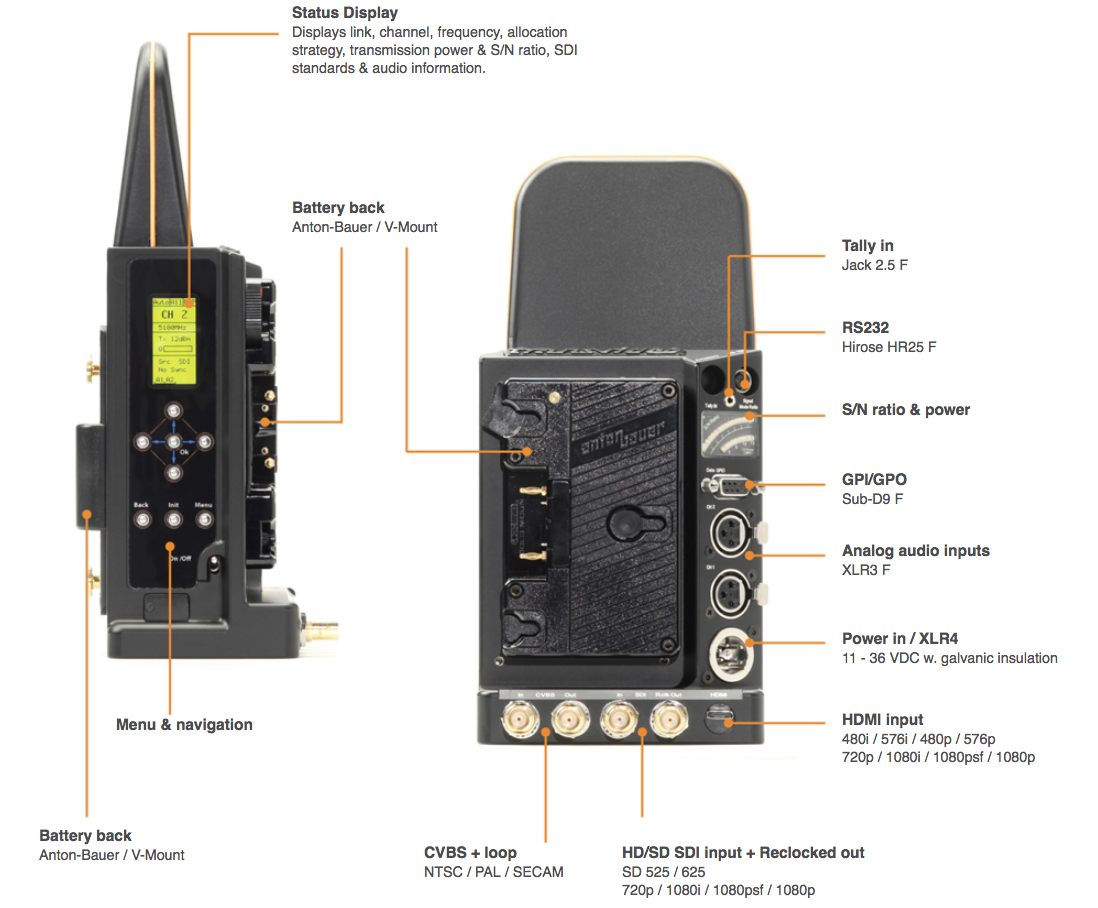

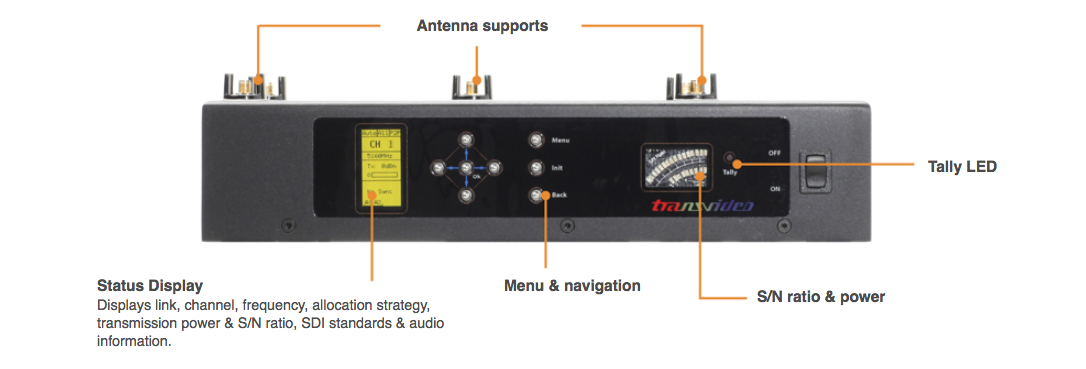

ModelsTitanHD TxTitanHD Rx
Video inputs & outputs1 x HD/SD SDI in + Rclk out
1 x mini HDMI in
1 x CVBS in + loop
2 x HD/SD SDI out
2 x CVBS out
Supported HD standards480p / 576p / 720p
1080p / 1080i / 1080psf
Supported SD standardsNTSC (M, J, 443) / PAL (M, BG, N) / SECAM
SD SDI 525 / 625
Audio2 ch. analog or SDI embedded
ModulationCOFDM MiMo
Latency5ms
Power10 - 36 VDC
22W max
10 - 36 VDC
18W max
Weight (g/lbs)1100 / 2.41450 / 3.2
Storage temperature
Operating temperature
-40°C +80°C
-20°C +55°C
TitanHD package (P/N 904TS0129) includes :
  • TitanHD Tx (transmitter)
  • TitanHD Rx (receiver)
  • 5 x Antennas 3dBi
  • U-shape holder with C-Stand adapter for the receiver
  • AL30 Power supply 30W
  • USB adapter for SW updates
  • Printed documentation
  • In a hard case with custom shaped foam
TitanHD Tx only (P/N 904TS0135) includes :
  • TitanHD Tx (transmitter)
  • USB adapter for SW updates
TitanHD Rx only (P/N 904TS0133) includes :
  • TitanHD Rx (receiver)
  • 5 x Antennas 3dBi
  • U-shape holder with C-Stand adapter for the receiver
  • USB adapter for SW updates

Available accessories

5 x 10dBi antennas array
Increases the robustness and range of transmission
P/N 904TS0140
10dBi rod antenna
Increases the robustness of transmission
P/N 904TS0141
