Stargate

Stargate

New generation of 7" high-end monitor

3G HD/SD - SDI LCD Monitor - Recorder

With 1920 x 1080 FullHD display

3000,*-Euros

* Without VAT - ExWorks, according to models availability

Stargate Transvideo
Measurements
  • Waveforms
  • Histogram
  • Vectorscope
  • False colors
Focus
  • Focus helper
  • Peaking
  • Zoom
Color / gamma
  • Factory color calibrated
  • Input profiles (Rec 709, Log-C, Canon-Log, S-Log, Linear, HDR clipping)
Markers
  • Cross (Central Cross)
  • 4:3, 14/9
  • Safe area
  • 1.85:1, 2.40:1
  • 16/9
3D Luts
  • Possibility to import external 3D Luts
  • Multiple banks
And more...
  • Tally
  • Record features
  • VirtualHorizon, ...

An essential production tool for directors and focus-pullers

More than ever the monitor-recorder has become an essential production and engineering tool for those involved in broadcast and cinematography, including directors, D.O.P.s, focus pullers, technical directors and engineers. The Stargate provides all the necessary functions in an intuitive interface with top Transvideo accuracy and reliability.

"Immediate Display" Technology

The Stargate has a fast path processing with a “immediate display’ capabilities with no latency. You can get the camera output directly without any introduced delay, increasingly important in many shooting situations

Job oriented views

Pre-programmed modes called ‘views’, feature a specific set assignment for each job - no need to navigate in deep menus to find the right tools.

Screen Protection

The Stargate monitor is delivered with an anti scratch and anti finger-print protective screen.
It is made with high quality material and magnetic attachment.

Replacement part is available to order online
P/N 918TS0285, 49,-Euros exWorks
Buy online

Manufacturing quality

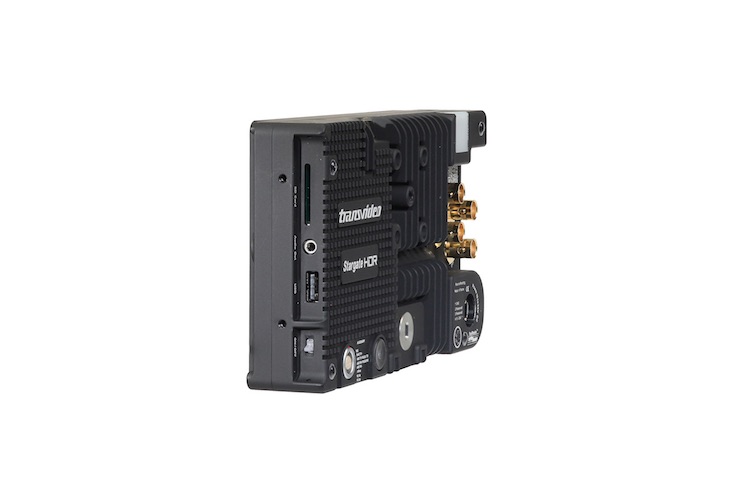

The Stargate has the same manifacturing quality as the CinemonitorHD lineup. It is made with precision milled aluminum housings fully sealed (no holes or noisy fans), state of the art optical glass protecting the screen and galvanic insulation.

Applications

Perfect for Directors, DOPs and Focus Pullers
Every kind of production - cinematography, broadcast, documentaries, sport, studio, location, video village…

Stargate DIT View

The DIT View features the following measurements and tools that are displayed outside of the picture :

  • Waveform luminance, Vectorscope, Histogram luminance
  • Audio monitoring, Video input and standard
  • Timecode, Tally
  • Battery / power information



Stargate Body-Rig View

The Body-Rig view displays VirtualHorizon, mostly used by Camera Stabilizing devices, called AvengerLeveler™.

  • Adjustable Range (max tilt on each side that the bubble will show)
  • Adjustable Limits (definable points where the bubble’s color will change)
  • Possibility to calibrate Horizon

Stargate Full Screen View

The Full Screen View shows only the picture from the first line first pixel to the last line last pixel.



Video Inputs3G/HD/SDI
Video output3G/HD/SDI (processed)
Recorder.H264, .MP4
DisplayLCD 7 inches
Picture zone 1920 x 1080
Supported Standards3G:  1080 / 50p, 60p
HD:  1080 / 50i, 60i
        1080 / 24p, 25p, 30p
        1080 / 24psf, 25psf
        720 / 25p, 30p, 50p, 60p
Contrast ratio
Viewing angle
Brightness
1200:1
±85° H&V
800Nits
White point calibration D65 ITU-R BT.709-5 & D56
Color space Rec. ITU-R BT.709-5
AvengerLeveler TM

Yes

Tally LED

Yes

Power XLR4 connector or battery adapter (optional)
10 - 36V DC
Power Cons.

22W nominal

External SD Card Slot

Yes

Dimensions
(l x h x d)

208.2 x 116.7 x 42.25 mm
8.2 x 4.59 x 1.66 inches

Weight770g, 1.7lbs

SD card specifications

Size
The maximum working size tested on the monitor is 128GBytes.

SDSC, SDHC and SDXC
 SD Cards are supported to this size.
Capacities over 128GBytes have not been tested.

Format
The SD card must be formatted in FAT32.

The SD card can be formatted by any computer or devices that can format the card into FAT32 File System.
The SD card can be formatted directly from the monitor. For this, go to the Technical Menu / Media Tab section for Stargate and System / SD Format icon for Starlite.

SD Card Speed Class
As the monitor records directly on the SD card, speed is needed.

SD cards exist in multiple “Classes”, each of which describes the maximum speed of the Reading and Writing operations.
Class 10
 is required for the Stargate and Starlite to record video.

Models
Samsung and SanDisk models have been tested with the Stargate and Starlite monitors.

We do not guarantee performance with other brands



Stargate Package

Package includes :
1 x Stargate (P/N 917TS0126) with screen protection (P/N 918TS0285)
1 x 4.5GHz HDTV cable BNC-M/BNC-M 1m Cable P/N 906TS0144
1 x 3D Swing arm including adapter for Arri Alexa/Amira P/N 918TS0256
1 x XLR4-F to RS3 power cable - P/N 906TS0010
Microfiber cloth and bag

All in a hard case with custom foam

Below accessories are also available :
Heavy Duty U-Shape holder for Stargate, constant torque only
P/N 918TS0291 - 180,-Euros exWorks
Yoke for Stargate - multi-rods, constant torque only
P/N 918TS0283 - 290,-Euros exWorks
Buy online
Battery back for Stargate
P/N 918TS0202A for Anton-Bauer, P/N 918TS0202V for V-Mount
280,-Euros exWorks
Buy online
Sun Hood for Stargate
P/N 918TS0284 - 80,-Euros exWorks
Screen Protection replacement part for Stargate
P/N 918TS0285 - 49,-Euros exWorks

Stargate brochure

PDF version (400KB) > Download
