CineMonitorHD 3DView Evolution

CinemonitorHD 3Dview Evolution

The necessary S3D tools with no compromise on the reliability and the picture quality

Starting from 5300,*-Euros

* Without VAT - ExWorks, according to models availability

CinemonitorHD 3DView Evolution Transvideo

About 3DView Evolution

The CineMonitorHD 3DView Evolution is the simplified version of the CineMonitorHD 3DView S. No compromise on the reliability and the picture quality, same resolution, but less functionality and basic features for the tools.

An extension of the CineMonitorHD Evolution, the CineMonitorHD 3DView Evolution is available in 8", 10", 12" and 15". The 3D models include all the functions of their 2D counter parts plus a S3D tools kit. They can also be used for regular 2D HD productions.

10", 12" and 15" models include 2 x SDI inputs + 2 reclock and 2 x HDMI inputs. 8" model include 2 x SDI inputs + 1 reclock. The 3D Single input allows processing of an embedded interleaved 3D signal.

Faithful 3D monitoring

Each camera/eye can be independently monitored as well as flipped vertically and/or horizontally. The measurement tools (waveform & histogram) display the 2 signal simultaneously.

S3D Tools

The CineMonitorHD 3DView Evolution includes multiple display modes to evaluate stereoscopic convergences and camera correlation. To use the 3D mode, the 2 signals must be synchronized. A genlock analyzer warms you when signals are not synchronized.

S3D Features

  • Anaglyph red/cyan
  • Anaglyph green magenta
  • Anaglyph blue/yellow
  • Monochrome
  • Embedded synchronizer
  • Vertical and horizontal flips
  • Derobe's grid
  • Horizontal shift
  • Black and white
  • Color
  • Shutter glasses

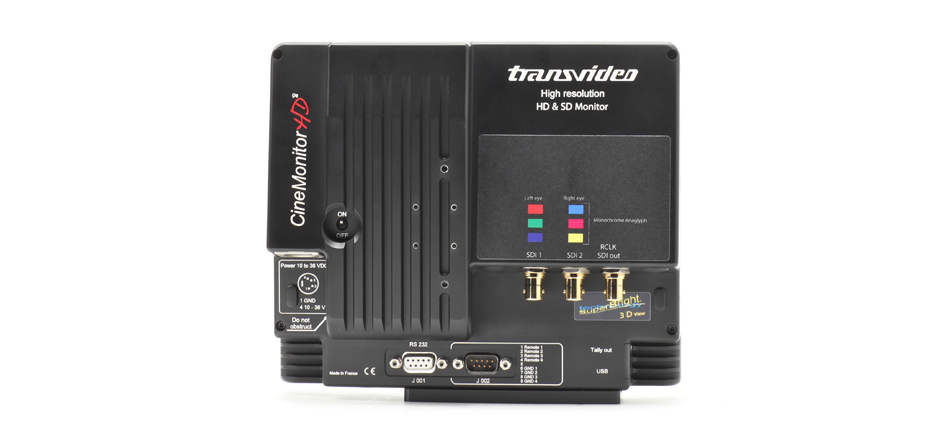

CinemonitorHD8 3DView Evolution back

CinemonitorHD 3DView Evolution

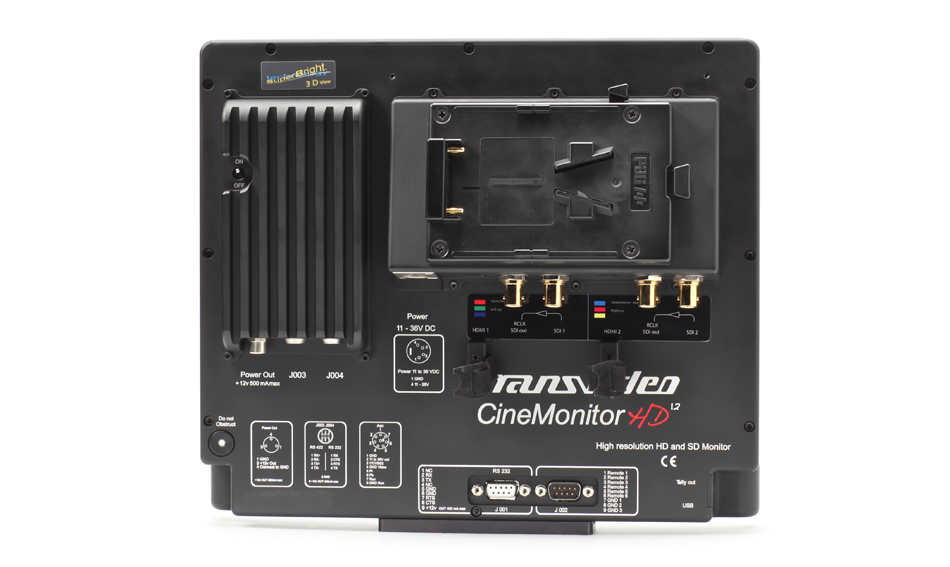

CinemonitorHD12 3DView Evolution back

CinemonitorHD 3DView Evolution
Models8" 3DView Evo10" 3DView Evo12" 3DView Evo15" 3DView Evo
Video inputs2 x HD/SD SDI in
1 x HD/SD SDI Rclk out
2 x HD/SD SDI in + Reclocked out
2 x mini HDMI in
Supported standards720p
1080p / 1080i / 1080psf
480p / 576p / 720p
1080p / 1080i / 1080psf
Display typeAMLCD
PixelsPicture zone 1024 x 560
White point calibrationD65 ITU-R BT.709-5 & D56
Color spaceRec. ITU-R BT.709-5
LatencyLess than 1 frame
Contrast ratio900:1500:1500:1700:1
Viewing angle±80° H
+60/-80° V
±80° H
±65° V
±80° H
+60/-80° V
±85° H
±85° V
Brightness (Nits)1000100010001000
Power21W34W36W54W
Length (mm/inch)
Height (mm/inch)
Depth (mm/inch)
215 / 8.5
190 / 7.5
60 / 2.4
256 / 10.1
227 / 8.9
86 / 3.4
298 / 117
262 / 10.3
86 / 3.4
344 / 13.5
310 / 12.2
86 / 3.4
Weight (g/lbs)1690 / 3.72680 / 5.93540 / 7.84200 / 9.2
Storage temperature
Operating temperature
-40°C +80°C
-20°C +55°C

Monitor package includes :

  • 1 x CineMonitorHD 3DView Evolution
  • 2 x Shoulder strap pins
  • 1 x Bottom slide
  • 1 x Screen protective cover
  • 1 x Microfiber cloth and bag
  • 1 x 4.5GHz 3D-HDTV BNC Dual Cable (2m)
  • 2 x Mini HDMI cables
  • 1 x Anaglyph glasses
  • 1 x USB adapter for SW updates

All in a hard case with custom foam
