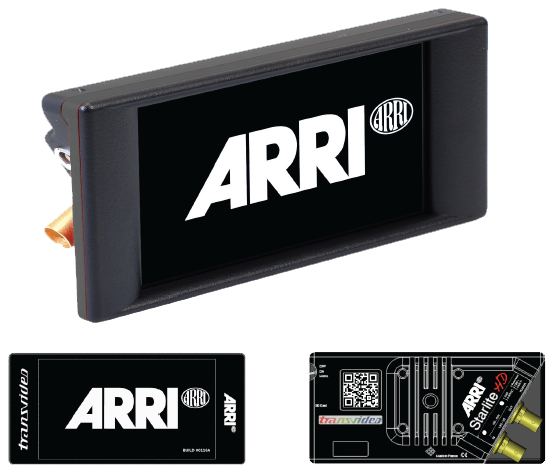

5" OLED Monitor with

Touch Screen and

ARRI bus Interface



The StarliteHD5-ARRI is sold exclusively by ARRI sales channels

Package includes :
  • 1 x StarliteHD5-ARRI
  • 1 x Cable Lemo5 to Lemo6 with wiring for the EXT connector of the AMIRA/MINI*
  • 1 x BNC cable
  • 1 x 3D swing Arm (short version : PN918TS0261)
  • 1 x 8Gb SD card class10
  • 1 x Pelican case


Optional accessories are available and can be ordered online

Buy accesories online




Inputs & outputs
  • HD-SDI and 3G-SDI on BNC
  • Reclocked output on BNC
  • ESD protection on the input


Power supply
  • 5-36 VDC
  • Power consumption 6 Watts


Recording Media
  • SD cards class10 32 Gb maximum


  • One Lemo 5 for Power and CAN bus


  • 1280x720 4.7” OLED


More Specifications
  • Operating temperature -25°C +45°C
  • Storage temperature -30°C +50°C
  • Rec-on-SDI on ARRI flag
  • Generates PDF reports
  • Housing made of machined avionic aluminium
  • Ultra-resistant coatings
  • Water-resistant and dustproof
  • Weight: 200 grams (<0.5lbs)


Optional accessories (Transvideo part numbers)
  • Magnetic sun hood PN-918TS0265
  • Magnetic Viewfinder attachement PN918TS0266
  • Magnetic Transportation cover plate PN918TS0268
  • Battery support for SONY L type (Lemo5) PN918TS0274
  • Battery support for CANON BP900 series (Lemo5) PN918TS0273
  • D-TAP/Lemo5 power cable PN906TS0187
  • RS3/Lemo5 power cable PN906TS0188
  • Lemo6/Lemo5 cable PN906TS0189


Buy accesories online


Dimensions Transvideo SHD5-ARRI

* Warning

Transvideo uses a specific cable for the StarliteHD5-ARRI

User must be extremely careful with the wiring of custom cables.

Using other cables may damage the product.


ARRI Cameras & StarliteHD Connectors Pin-Outs

All pin-outs for camera interfaces appear as seen by the user.
